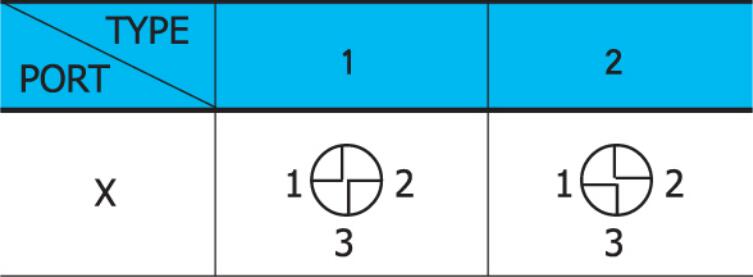

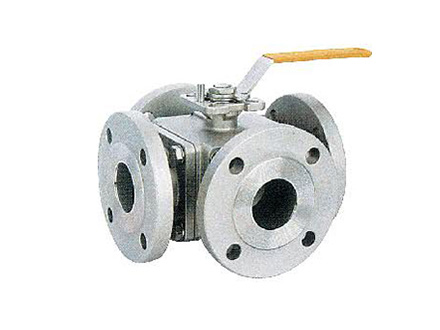

· Invest Cast Components Standard Bore, X-port Split body design, Blow-out-proof stem design, Bottom entry stem Valve design allows 360 degree rotation, positive location is available at 90 degree increments by the valve locking device Direct-mounting of actuators to valves design For Food, General Chemical and Industrial application Carbom steel of special Alloy upon request
Standard compliance:
ASME/ANSI B16.34
Face to Face: Mrg.Std.
Flange Dimensions: ANSI B16.5 150
Pressure Test Accoriding To API 598

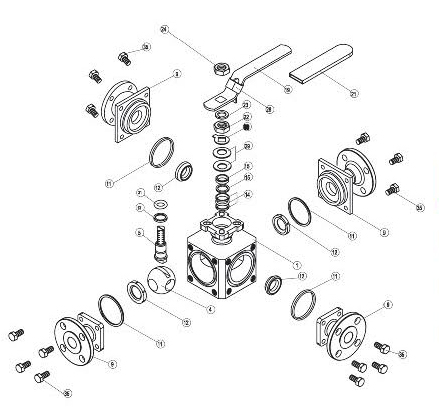

| NO. | 部件名稱 PART NAME | 材料 MATERIAL |
| 1 | BODY | ASTM A351 GR.CF8M |
| 2 | BALL | ASTM A351 GR.CF8M |
| 3 | STEM | SS316 |
| 4 | END CAP | ASTM A351 GR.CF8M |
| 5 | SEAT | PTFE |
| 6 | BODY SEAL | PTFE |
| 7 | STEM PACKING | PTFE |
| 8 | THRUST WASHER | PTFE |
| 9 | GLAND BUSH | SS304 |
| 10 | BLAND WASHER | PTFE |
| 11 | HANDLE | SS304 |
| 12 | HANDLE COVER | PLASTIC |
| 13 | STEM NUT | SS304 |
| 14 | STEM WASHER | SS304 |
| 15 | HANDLE NUT | SS304 |
| 16 | LOCKING PAD | SS304 |
| 17 | BELLEVILLE WASHER | SS304 |
| 18 | TAB WASHER | SS304 |
| 19 | O-RING | VITON |
| 20 | BOLT | SS304 |

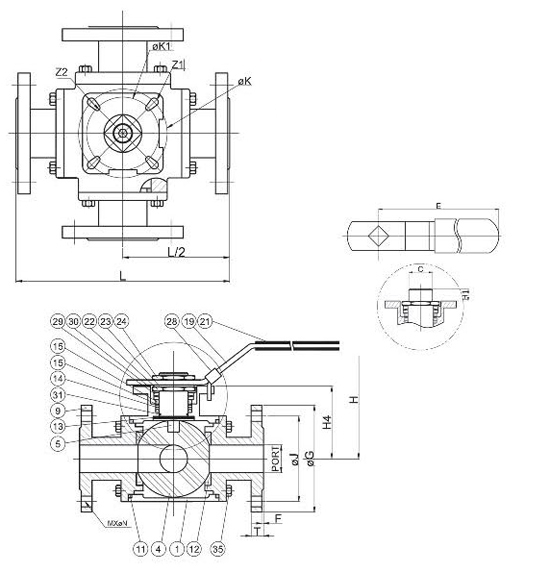

| SIZE | PORT | L | E | H | H1 | H4 | C | ØG | ØJ | M | ØN | T | F | ØK | ØK1 | Z1 | Z2 |
| 1/2" | 16.0 | 147.0 | 133.0 | 89.0 | 7.5 | 50.0 | 9.0 | 95.0 | 65.0 | 4 | 14.0 | 16.0 | 2.0 | 42.0 | 36.0 | 6.0 | 6.0 |
| 3/4" | 20.0 | 155.0 | 178.0 | 98.0 | 9.5 | 59.5 | 11.0 | 105.0 | 75.0 | 4 | 14.0 | 18.0 | 2.0 | 50.0 | 42.0 | 7.1 | 6.0 |
| 1" | 25.0 | 170.0 | 178.5 | 102.0 | 11.0 | 63.5 | 11.0 | 115.0 | 85.0 | 4 | 14.0 | 18.0 | 2.0 | 50.0 | 42.0 | 7.1 | 6.0 |
| 11/4" | 32.0 | 195.0 | 230.0 | 118.0 | 15.2 | 79.5 | 14.0 | 140.0 | 100.0 | 4 | 18.0 | 18.0 | 2.0 | 70.0 | 50.0 | 9.2 | 7.1 |
| 11/2" | 38.0 | 240.0 | 230.0 | 127.0 | 14.3 | 88.0 | 14.0 | 150.0 | 110.0 | 4 | 18.0 | 18.0 | 2.0 | 70.0 | 50.0 | 9.2 | 7.1 |
| 2" | 50.0 | 261.0 | 280.0 | 139.0 | 17.8 | 105.0 | 17.0 | 165.0 | 125.0 | 4 | 18.0 | 20.0 | 2.0 | 102.0 | 70.0 | 11.4 | 9.2 |
