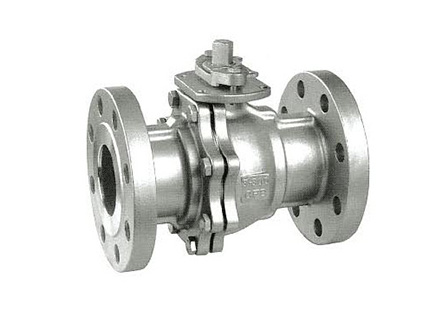

· 結構長度 FACE TO FACE DIMENSION: ANSI B16.10
· 法蘭規范 END RLANGE DIMENSION: ANSI B16.5
· 設計制造 DESIGN ANSI B16.34
· 檢查與測試 TEST:API 598
· 帶 ISO 5211平臺座 WITH ISO5211 MOINTING PAD
· 精密鑄造 INVESTMENT CASTING BODY
· 防爆軸心/全流量 BLOW-OUT PROOF STEM/FULL PORT
· 杠桿操作/齒輪操作 LEVER OPERATED/ GEAR CPERATED

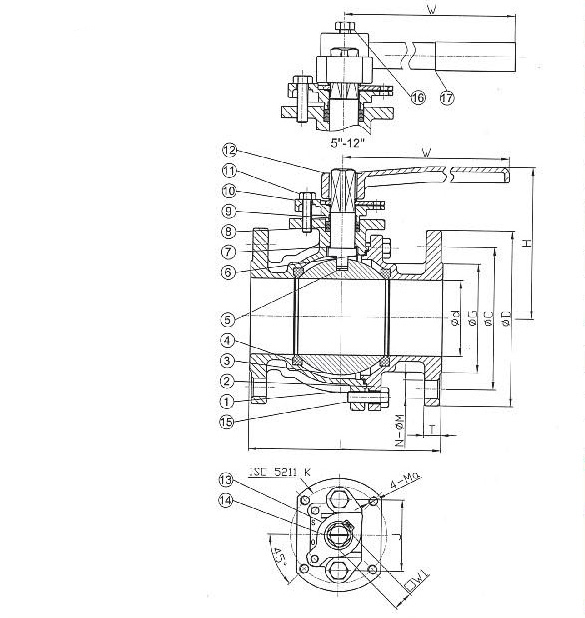

| NO. | 部件名稱 | PART NAME | 材料 MATERIAL | |||
| 1 | 閥體 | BODY | FC20 | WCB | CF8 | CF8M |
| 2 | 閥蓋 | CAP | FC20 | WCB | CF8 | CF8M |
| 3 | 鋼球 | BALL | CF8 | CF8 | CF8 | CF8M |
| 4 | 球墊 | SEAT | PTFE | |||
| 5 | 軸心 | STEM | SS304 | SS304 | SS304 | SS316 |
| 6 | 大薄片 | GASKET | PTFE | |||
| 7 | 小薄片 | THRUST WASHER | PTFE | |||
| 8 | 中口 | PACKING | PTFE | |||
| 9 | 襯套 | GLAND PACKING | PTFE | |||
| 10 | 牛楠 | GLAND | CF8 | |||
| 11 | 牛楠螺栓 | GLAND BOLT | SS304 | |||
| 12 | 把手 | HANDLE | WCB | |||
| 13 | 桃形擋片 | STOPPER | SS304 | |||
| 14 | C型扣環 | SNAP RING | SS304 | |||
| 15 | 體蓋螺栓 | BOLT | SS304 | |||
| 16 | 把手螺栓 | HANDLE BOLT | SS304 | |||
| 17 | 把手套 | PLASTIC COVER | PLASTIC | |||
|
殼體（水） SHELL(BY WATER) |
450PSI | |
| 32kg/cm² | ||
|
閥座 SEAT |
水 BY WATER |
315PSI |
| 22kg/cm² | ||
|
氣體 BY AIR |
85PSI | |
| 6kg/cm² | ||
| SIZE | d | D | C | G | T | N-ØM | L | H | W | W1 | J |
ISO 5211 |
k | Ma | |
| FC | SUS | ||||||||||||||
| 1/2" | 15 | 89 | 60.5 | 35 | 12.1 | 12.1 | 4-Ø16 | 108 | 70 | 160 | 12 | 50 | F04 | 42 | M5 |
| 3/4" | 20 | 98 | 70.0 | 43 | 12.7 | 12.1 | 4-Ø16 | 117 | 73 | 160 | 12 | 50 | F04 | 42 | M5 |
| 1" | 25 | 108 | 79.5 | 51 | 14.3 | 12.1 | 4-Ø16 | 127 | 77 | 160 | 12 | 50 | F04 | 50 | M6 |
| 11/4" | 32 | 117 | 89.5 | 64 | 14.9 | 12.7 | 4-Ø16 | 140 | 85 | 160 | 12 | 50 | F05 | 50 | M6 |
| 11/2" | 40 | 127 | 98.5 | 73 | 17.5 | 14.3 | 4-Ø16 | 165 | 104 | 186 | 17 | 62 | F07 | 70 | M8 |
| 2" | 50 | 152 | 120.5 | 92 | 19.1 | 15.9 | 4-Ø19 | 178 | 114 | 186 | 17 | 62 | F07 | 70 | M8 |
| 21/2" | 65 | 178 | 139.5 | 105 | 22.3 | 17.5 | 4-Ø19 | 190 | 142 | 324 | 21 | 75 | F07 | 70 | M8 |
| 3" | 80 | 190 | 152.5 | 127 | 23.9 | 19.1 | 4-Ø19 | 203 | 153 | 324 | 21 | 75 | F10 | 102 | M10 |
| 4" | 100 | 229 | 190.5 | 157 | 23.9 | 23.9 | 8-Ø19 | 229 | 166 | 324 | 21 | 75 | F10 | 102 | M10 |
| 5" | 125 | 254 | 216.0 | 186 | 23.9 | 23.9 | 8-Ø22 | 356 | 224 | 750 | 24 | 89 | F12 | 125 | M12 |
| 6" | 150 | 279 | 241.5 | 216 | 25.4 | 25.4 | 8-Ø22 | 394 | 247 | 750 | 24 | 89 | F12 | 125 | M12 |
| 8" | 200 | 343 | 298.5 | 270 | 28.6 | 28.6 | 8-Ø22 | 457 | 305 | 1000 | 32 | 100 | F12 | 125 | M12 |
| 10" | 250 | 406 | 352.0 | 324 | 30.2 | 30.2 | 12-Ø25 | 533 | 327 | 1000 | 32 | 100 | F14 | 140 | M16 |
| 12" | 300 | 483 | 432.0 | 381 | 31.8 | 31.8 | 12-Ø25 | 610 | 355 | 1000 | 32 | 100 | F14 | 140 | M16 |
